Wooden Camera - C-Box (Hd-SDI, VB-Mount)

C-Box (HD-SDI, V-Mount) is a 1 input, 4 output, HD-SDI distribution amplifier
Código de producto: 171300
Marca: WOODEN CAMERA
Producto Disponible

862,44€
Más Información

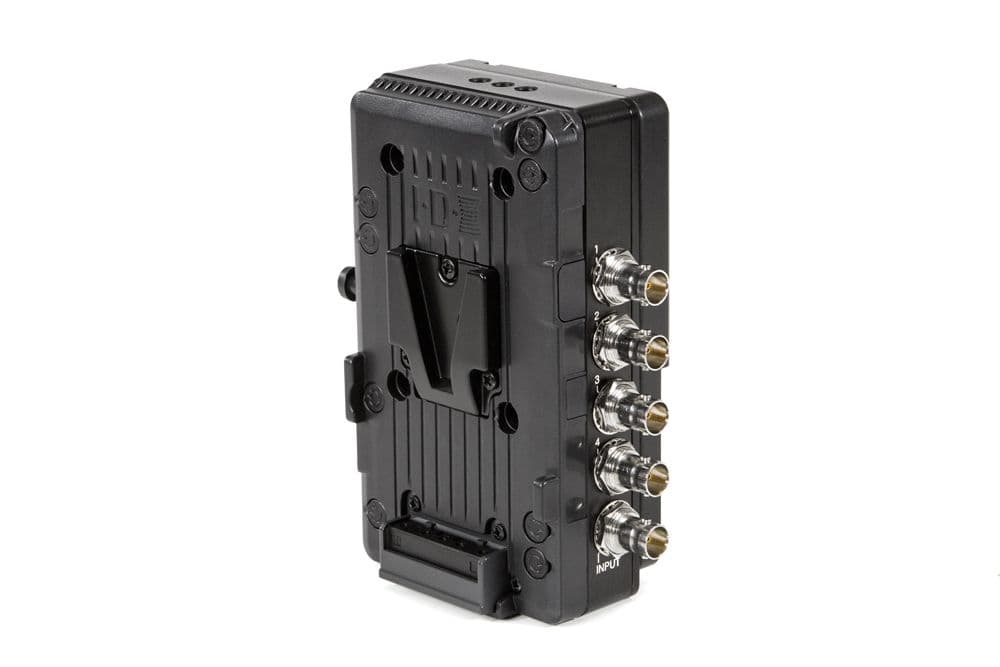

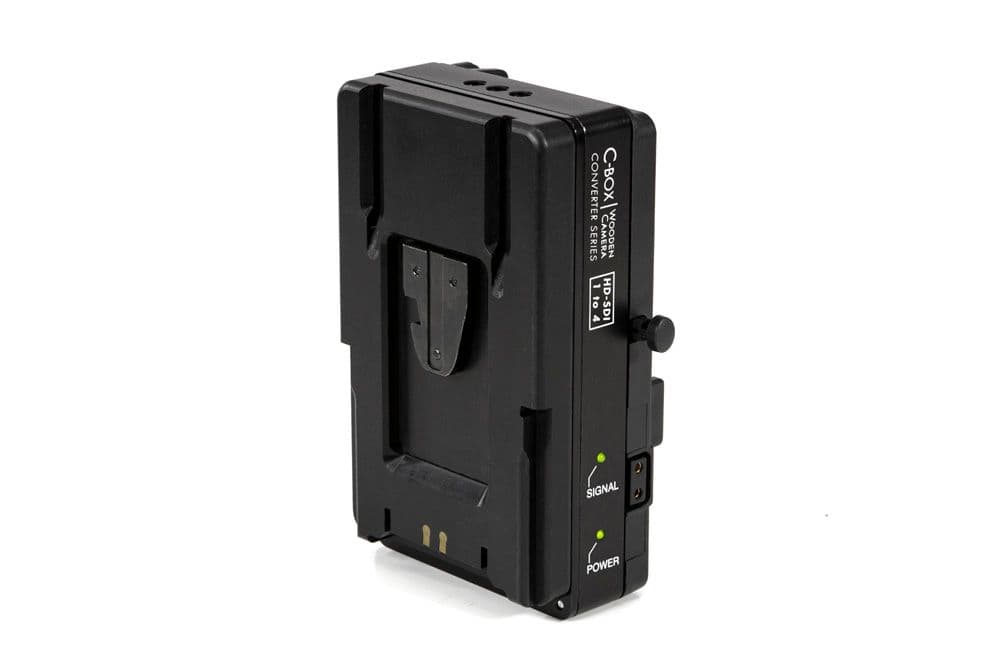

C-Box (HD-SDI, V-Mount) is a 1 input, 4 output, HD-SDI distribution amplifier that draws power internally from the male V-mount plate attached and passes power through to the camera via the female V-Mount plate on the other side. The male V-Mount plate has an additional D-Tap output for accessory power. Each HD-SDI output is independently reclocked and carries the same strength as the original signal. LED indicators are located on the operator's side to show status of power and signal.

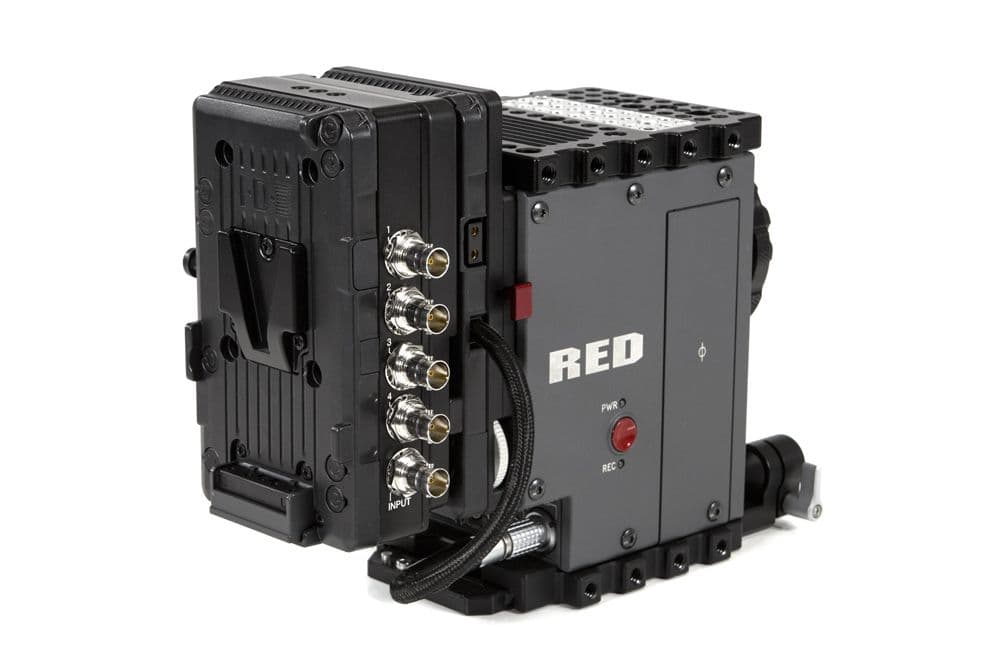

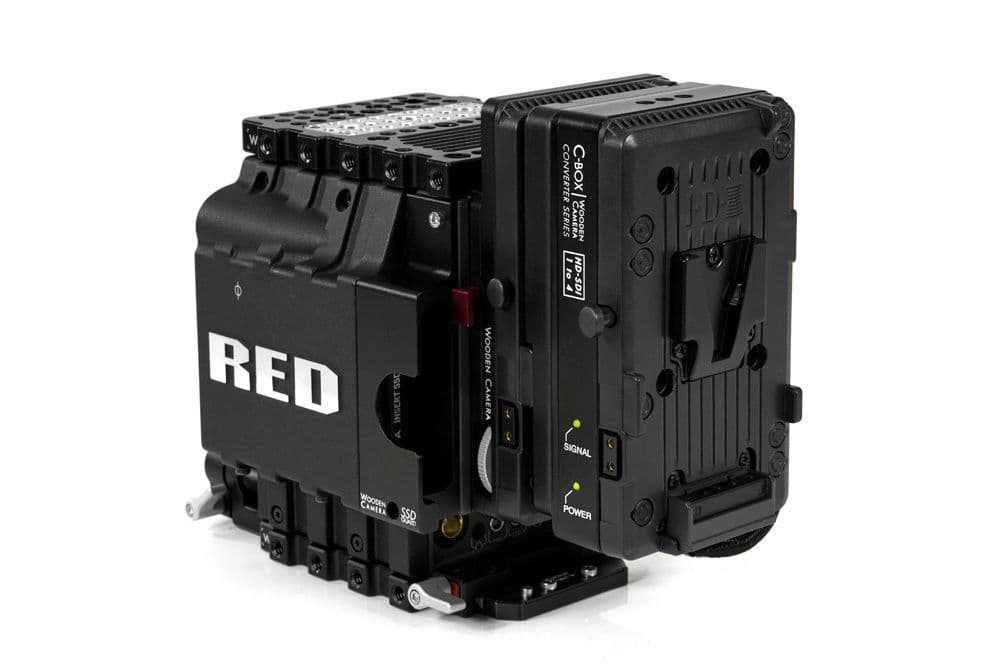

This version attaches between any V-Mount plate and V-Mount battery. For example, the C-Box (HD-SDI, V-Mount) can fit between the Switronix XP-L95RED and the WC V-Mount (Epic/Scarlet). Another example would be attaching it between the Switronix XP-L95RED and the WC V-Mount (BMC).

Overview:
- Power Input via V-Mount battery (can accept 8-20 VDC .5A)
- Attaches between standard V-Mount battery and camera V-Mount plate
- 1/4-20 holes on top and bottom allow for attachment of rod clamps, cheeseplates, and other accessories
- Re-clocks standard SD, HD and 3G SDI data rates
- Auto bypasses non-standard SDI rates from 20Mbit/s to 3Gbit/s
- Passes SDI embedded audio and ancillary data
- Operating Temperature 0 to +40 C
- Operating Humidity 0 to 90% Non-Condensing

Signal Information
- Data Types: SMPTE 259/292/424
- Data Rates: 19 Mbit/s through 3.0 Gbit/s
- Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
- Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
- Input Level: 800 mV P-P +/- 20%
- Input Impedance: 75 Ohms +/- 1%
- Output Level: 800 mV P-P +/- 5%
- Output Impedance: 75 Ohms +/- 1%
- Output Jitter: < 0.2 UI
