SLIDE KAMERA HGN-1 2D HEAD + CAJA DE ALUMINIO

An innovative type of drive head - screw drive
- Head max load: 8kg
- Built-head design HGN-1 2D provides rigidity and resistance to contaminants, and thus the lesser risk of the head components damage.
- Connectors unplugging in the head HGN-1 2D beyond the permissible scope of the rotation,
- Advanced control algorithms that has a few 2D heads available on the market.

HGN-1 2D remote controlled head is a device designed for precise rotation of the camera or photo camera in X-axis and Y-axis. Thanks to the use of worm gears and steering that maintains steady speed regardless of the load, the head does not require precise balancing. The compact and cased construction ensures long and problem-free operating.

• photo camera / camera is mounted on the mounting bracket equipped with a mounting slot for 3/8 "and 1/4" screws
• mounting bracket moves up and down, allowing to the set the accessories in the rotation axis of the head. Mounting slot allows to move the accessories forward and backward
• accessories are mounted on the mounting bracket with the use of 1/4" lub 3/8" screws
• to connect the head with the controller use the cable with the safety coupling. The safety coupling disconnects the cable in case it wraps around the axis of the head thus preventing it from damage
• camera head is powered by pluging the adapter into the socket on the controller
• there is a 3/8" hole in the head base to mount it on other devices equipped with 3/8" screw, such as camera cranes, tripods

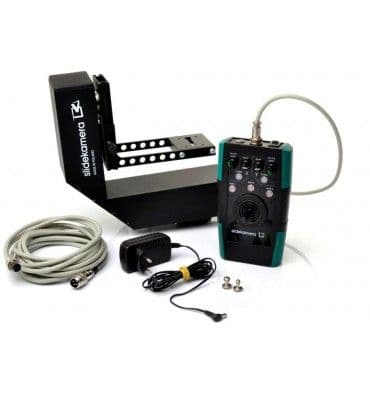

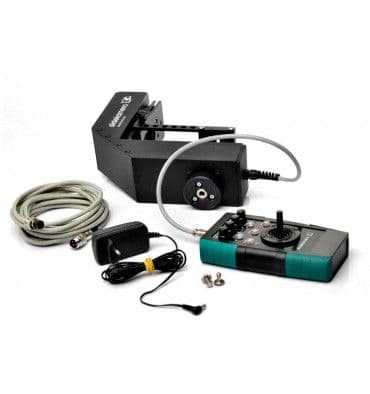

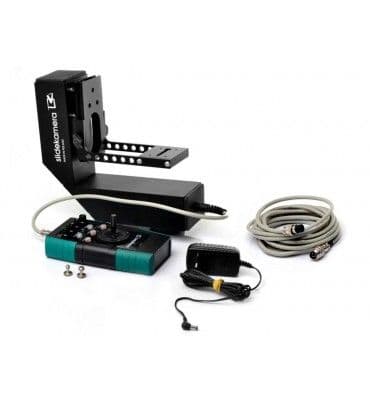

The set includes:

• HGN-1 2D remote controlled head HGN-ST controller

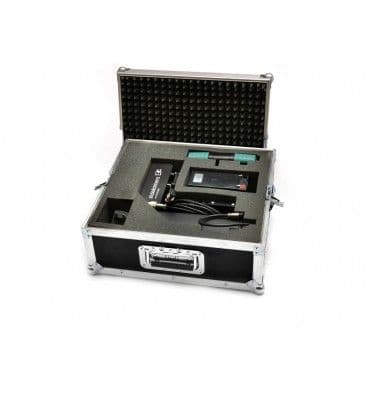

• transport case for HGN-1 head and other accessories
• connecting cable: 5 meters
• 1/4" camera head screw
• 3/8" camera head screw
• plug-in adapter 12V 1.5A

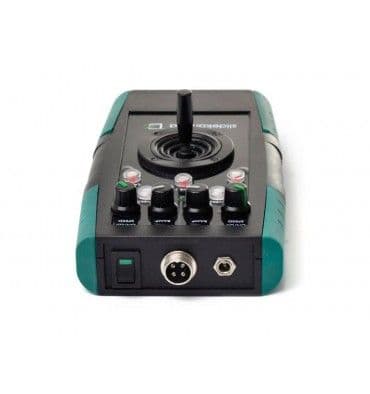

Basic features of the controller:

• steering cable with safety coupling
• intuitive controls - speed of the rotation is linearly proportional to the joystick deflection
• smooth change of speed
• movement direction changes with one button
• smooth regulation of gentle start/ stop
• possibility to disable the gentle start
• 3 memory banks to store and playback the motion ( Bank1 - 6min 40s, Banks 2 and 3 – 3min 20s)
• possibility to playback the recorded motion and mix it with joystick
• stores recent settings and recorded motion after switching off the power.

Technical specification:

• head weight: 3kg
• head size: 268 x 80 x 264 mm
• head load capacity: 8kg
• maximum size of the camera / photo camera, width: 200mm, height: 200mm
• range of the head rotation angles in the X-axis and Y-axis N x 360o
• maximum rotation speed ~30o/1s (180o/6s)
• supply voltage 7..14,4V 15W
• battery working time 12V 7Ah min. 10H
• operating temperature range 10-40oC
• recommended relative humidity up to 90%
