IKAN VXF7 4K HDMI/3G-SDI FIELD MONITOR DELUXE KIT
VXF7-DK
Outstanding 4K image quality is now available for the VX monitor series! The VXF7 features a
beautifully sharp, full HD 1920 x 1200 IPS LCD panel. It comes with many standard features such
as peaking, false color, zooming, pixel-to-pixel mapping and histogram levels. This type of quality
ensures you will capture your desired shot on the first try and makes the VXF7 monitor the ideal
workhorse for any production environment. With the deluxe kit everything you need to get up and
running is included.
Full HD Panel
The VXF7’s full HD panel is incredibly sharp and pristinely clear. Blacks are deep, colors are
amazingly accurate and the viewing angles are nearly perfect on the 1920 x 1200 (screen) resolution.
Incorporating the IPS LCD panel eliminated many issues such as bad viewing angles and color rendition
that occurred with standard TFT LCD panels. What you get with this on-camera monitor is nothing less
than stellar image quality.
Made for Professionals
The VXF7 is a professional tool designed for the working professional. The ergonomics and button
layout provides ease of use in the field. Four knobs on the front make it easy to adjust settings such
as brightness, contrast and color. The back of the monitor is equipped with professional BNC connectors
to keep your cables in place. A locking 4-pin XLR power input is also included so you never have to
worry about losing power with a loose connection.
4K & Ultra HD Support
The VXF7 pairs perfectly with your current or future 4K compatible camera. It supports both the
Ultra HD 3840 x 2160 resolution and Full 4K 4096 x 2160 pixel resolution. To help you focus with

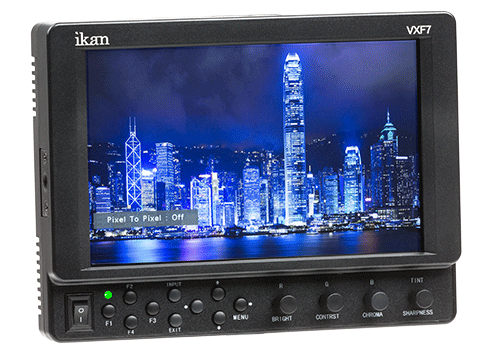

such high resolutions, we included the Pixel-to-Pixel mapping feature, which provides a 1:1 pixel
representation of the 4K image coming through your camera lens.
Inputs and Outputs
The VXF7 features multiple inputs and outputs including composite, component, 3G-SDI and HDMI.
Whatever signal is sent your way, the VXF7 is capable of handling it. Need to convert from SDI to
HDMI? The VXF7 can quickly loop out your SDI signal to any HDMI monitor.
The Complete Package
The deluxe kit includes everything you need in the box. The package includes everything from the
standard kit plus a hardcase, battery, charger, and two slim HDMI cables. The kits are also availbe
in Sony L, Canon 900, Canon E6, Panasonic D54, and Nikon EL5 confirgurations.
Shipping Weight (lbs): 3
Shipping Dimensions (in): 3 x 14.75 x 7.75 in.
Product Weight (lbs): 1
Product Dimensions (in): 7.36 x 5.6 x 1.3 in.

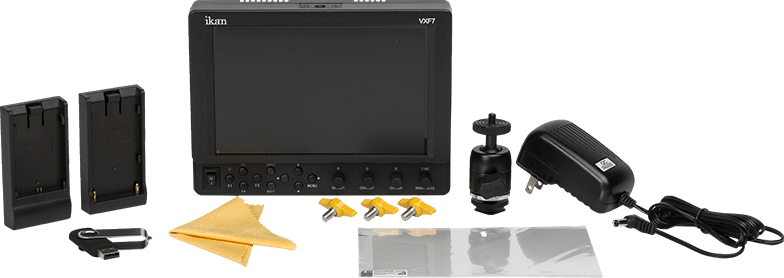

What's Included:
USB Drive
Screen Protector
Screen Cleaning Wipe
Mini to Standard USB Adapter
DV Battery Plate
DV Battery Charger
Cold Shoe Mount
AC Adapter
VXF7 Monitor
Slim 1.5 Ft HDMI Cable (Micro To Standard)
Slim 1.5 Ft HDMI Cable (Mini To Standard)
Hard Case
Supported Video Signal:
3G-SDI:
1920x1080p @ 50, 59.94, 60 Hz
HD-SDI
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
SD-SDI:
720x480i @ 60Hz
720x576i @ 50Hz
HDMI:
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
3840x2160p @ 24, 25, 30 Hz
4096x2160p @ 24 Hz
Component:
720x480i @ 60 Hz
720x576i @ 50 Hz
1280x720p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
Composite:
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM
Quick Start Guide: VXF7-DK Downloadable PDF
Aspect Ratio: 16:10
Backlight: LED
Brand: Ikan
Brightness: 300 cd/m2
Build Material: Heavy Duty Plastic
Color Depth: 16.7 Million
Color System: PAL/NTSC/SECAM (Auto-Detected)
Contrast Ratio: 800:1
Dimensions: 7.36 x 5.6 x 1.3 in
Dimensions Metric: 187 x 142 x 33mm
Display Technology: IPS
Fixture Weight: 1 lb / .45 kg (monitor only)
Input Voltage: DC 6V - 24V
Inputs: 3G-SDI, HDMI, Component, Composite
Operating Temperature: 0 deg C ~ 50 deg C (32 deg F ~122 deg F)
Outputs: 3G-SDI, HDMI, Component, Composite
Pixel Pitch: 0.07875 - 0.07875 (mm)
Power Consumption: 11W
Resolution: 1920 x 1200
Response Time: 20ms
UPC Code: (-S) 847983023448, (-C)847983023455, (-E6) 847983023462, (-P) 847983023479, (-N) 847983023486
Viewing Angle: 178 degrees horizontal/178 degrees vertical
