IKAN DH5E 5″ 4K HDMI ON-CAMERA LCD FIELD MONITOR DELUXE KIT

DH5e

The successor to the popular DH5 is here! The DH5e keeps what made the original great: it’s small,
lightweight and has great image quality. In addition, it now features 4K and Ultra HD support as well as
an intuitive touch screen that allows for “pinch to zoom” pixel to pixel. The DH5e is the perfect monitor for
those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that
are always on the go.

Full HD and Touch Capability

The Full HD 1920 x 1080 panel on the DH5e is amazingly clear, packing 440 pixels per inch. The touch
capability is new for the DH5e. Now you can easily and intuitively zoom in and out of your shot with the
pinch-to-zoom gesture. You can also get a quick glance at your menu settings and features with an easy
tap on the screen.

360° Product View

Right Tools for the Right Shot

The DH5e is equipped with all of the necessary software features to create the perfect shot: false color,
peaking, zooming, guides, as well as histogram & audio meters. It also features image flip so you can
adjust the monitor according to your needs.

Inputs and Outputs

It’s incredibly easy to set your HDMI input and output signals on the DH5e. A headphone jack and audio
meter display helps you make sure audio levels are optimally set.

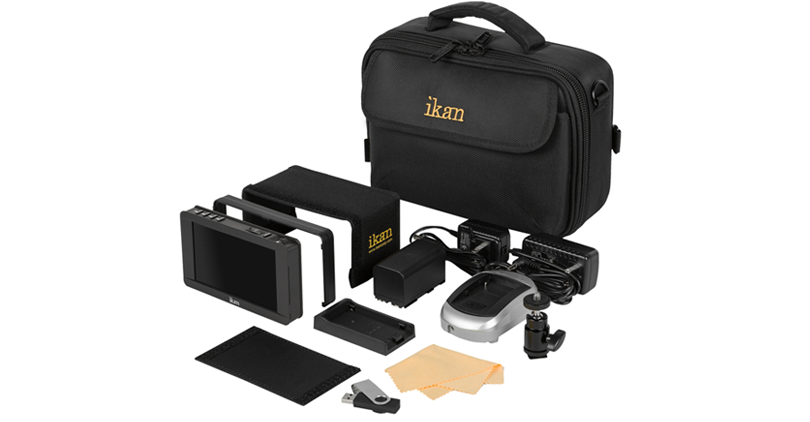

In the Box

The DH5e Deluxe Kit comes with a soft case, battery, charger, standard to micro HDMI cable, standard to mini HDMI cable, sunvisor, sunhood, screen protector, screen wipe, a USB drive for software updates as well as a Battery plate. We pack a lot of value into a small package!

What's Included:

Standard to Mini HDMI Cable (1.5 ft)
Sunhood
Standard to Micro HDMI Cable (1.5 ft)
Soft Padded Case
Screen Protection Film
Screen Wipe
DV Battery Plate
DV Battery Charger
DV Battery
DH5e Monitor
AC Adapter

Backlight: LED
Brand: Ikan
Brightness: 450 cd/m2
Color Depth: 16.7 Million
Color System: PAL/NTSC/SECAM (Auto-Detected)
Contrast Ratio: 1000:01:00
Dimensions: 5.5 x 3.2 x 0.7 in
Dimensions Metric: 142 x 82 x 20
Input Voltage: DC 7-24V
Inputs: HDMI
Operating Temperature: 0 deg C ~ 50 deg C (32 deg F ~122 deg F)
Outputs: HDMI
Pixel Pitch: 0.01925×0.05775 (mm)
Power Consumption: 6W
Resolution: 1920 x 1080
Response Time: 20ms
Screen Size: 5 in
UPC Code: 847983019113 (C), 847983017089 (E6), 847983017096 (N), 847983017102 (P), 847983017119 (S)
